WSM-BL241-ADA-008DK

Development Kit, MBN52832 Bluetooth Module, v5, NFC, J-Link, SWD, UART

MURATA WSM-BL241-ADA-008DK
×

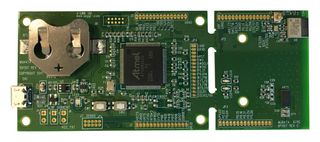

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MURATA MURATA
Manufacturer Part No:
WSM-BL241-ADA-008DK
Order Code:
2841013
See all Technical Docs

Product Overview

The WSM-BL241-ADA-008DK from Murata is a MBN52832 development kit. It is an evaluation and application development kit for MBN52832 BLE module, a compact Bluetooth Smart module which combines a 2.4GHz transceiver, an ARM Cortex-M4 CPU, flash memory, a high speed clock and an on-board antenna in a small package. MBN52832DK can serve as a software development platform for creating Bluetooth Smart and NFC-enabled systems using the Nordic nRF52 SDK.
  • Bluetooth® v5 (higher throughput, increased broadcast capacity)
  • ANT, NFC tag
  • Nordic nRF52832 Bluetooth Smart® with built-in ARM cortex M4 core with 64KB RAM and 512KB flash
  • Bluetooth/ANT antenna configuration: on-board PCB antenna, supports external antenna from pin pad
  • Maximum transmit power: +4dBm at antenna port (LDO mode)
  • Receive sensitivity: -93dBm at 1Mbps (LDO mode)
  • Power consumption TX 7mA at 3.5dBm (DCDC mode), RX 6mA (DCDC mode)
  • 20 GPIO, 5 ADC, UART, SPI, I2C, PWM and debug SWD interfaces
  • Operating temperature range from -40°C to 85°C
  • Dimension of 7.4mm x 7mm x 0.9mm

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Murata Power Solutions

:
MBN52832

:
Wireless Connectivity

:
Bluetooth Low Energy, NFC

:
Dev Board MBN52832

:
-
