PCMF3HDMI2SZ

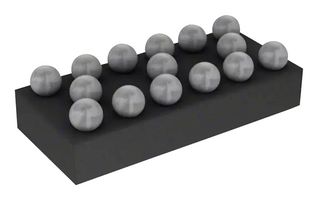

EMI Filter, 3 Channels, WLCSP-15

NEXPERIA PCMF3HDMI2SZ
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
NEXPERIA NEXPERIA
Manufacturer Part No:
PCMF3HDMI2SZ
Order Code:
2627937
Product Range
PCMFXHDMI2S Series
Also Known As:
PCMF3HDMI2SZ
Technical Datasheet:
PCMF3HDMI2SZ   Datasheet
See all Technical Docs

Product Range Selector (PCMFXHDMI2S Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Common Mode Filter with ESD Protection

:
6 Data Lines

:
Common-Mode

:
WLCSP

:
15Pins

:
PCMFXHDMI2S Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The PCMF3HDMI2S is a common mode EMI filter for differential channels with integrated ESD protection in 15 pin WLCSP package. The device is designed to provide low insertion loss for differential high speed signals on each channel while unwanted common mode signals are attenuated. It is used in Smartphone, cellular and cordless phone, tablet PC and mobile internet device (MID), HDMI 2.0, HDMI 1.4, MIPI M-PHY and D-PHY as used in camera serial interface (CSI) and display serial interface (DSI) and general purpose EMI and radio-frequency interference (RFI) filter and downstream ESD protection.
  • Three differential channel common mode EMI filters with integrated ESD protection
  • ESD protection up to ±15KV contact discharge according to IEC 61000-4-2
  • Superior common mode suppression over a wide frequency range
  • Superior RF performance compared to other integrated/discrete filters with external ESD protection
  • Extremely high symmetry between line pairs

Applications

Signal Processing, Safety, Consumer Electronics, Portable Devices
