782257-01

782257-01 is a USB-6363 32AI, (16-bit, 2MS/s), 48 DIO USB multifunction I/O device. It offers analogue I/O, digital I/O, and four 32-bit counters/timers for PWM, encoder, frequency, event counting, and more. On-board NI-STC3 timing and synchronization technology delivers advanced timing functionality, including independent analogue and digital timing engines and retriggerable measurement tasks. The USB-6363 is well suited for a broad range of applications, from basic data logging to control and test automation. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.

• Number of analogue output channels are 4
• Number of bidirectional digital channels are 48
• Number of counters/timers are 4
• Analog input absolute accuracy is 1660μV
• Analog input FIFO buffer size is 2047 samples
• Operating temperature range from 0°C to 45°C
• IEC 61010-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1 safety compliance standards

Notes

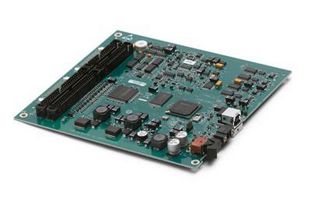

Board only.
