NRF-PPK2

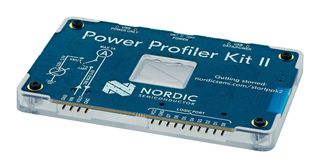

Power Profiler Kit II, Current Measurement Tool, Nordic Development Kits

NORDIC SEMICONDUCTOR NRF-PPK2
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
NRF-PPK2
Order Code:
3595499

Product Overview

The Power Profiler Kit II (PPK2) is an easy-to-use tool for current measurements and power consumption optimization of embedded solutions. The PPK2 connectors can be connected to any Nordic DK or custom board as a standalone unit, i.e. there are no requirements for additional kits or debuggers. The PPK2 supports both a source mode and an ampere meter mode.
  • 200nA to 1A current measurement range with a resolution that varies between 100nA and 1mA
  • Source mode and ampere meter mode
  • Source mode includes built-in programmable regulator with a 0.8V to 5V output range and 1A current
  • 100Ksps sampling rate (10 x greater than previous generation)
  • Standalone unit
  • 8 digital inputs for low-end logic analyser support
  • Measure instantaneous and average current on all Nordic DKs, in addition to custom boards
  • Supported through nRF connect for desktop's power profiler app
  • Export measurement data for post processing

Contents

Power Profiler Kit II board, 4-pin current measurement cable, 10-pin logic port cable.

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Power Profiler Kit II

:
Nordic Development Kits

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel
Best Seller

Available for back order

Deliveries start from 1/11/22

Notify me when back in stock

RM455.88

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ RM455.88
