GU256X64D-7000

VFD Display, Dot Matrix, 256 x 64, 28.65mm x 115.05mm, Parallel / RS-232, , 4.75 V to 5.25 V

NORITAKE ITRON GU256X64D-7000
×

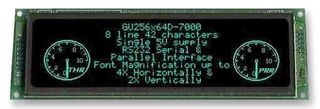

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
GU256X64D-7000
Order Code:
1495429
Technical Datasheet:
GU256X64D-7000   Datasheet
See all Technical Docs

Product Overview

The GU256X64D-7000 is a Dot Graphic VFD Module include the vacuum fluorescent display glass, VF drivers and micro-controller ICs with refresh RAM, character generator and interface logic. The high speed 8-bit parallel interface is 5V TTL/CMOS compatible suitable for connection to a host CPU bus. The asynchronous serial interface accepts baud rates up to 115200 with none parity. The module is ready to receive ASCII characters without initialization commands. The 7000/7003 versions have firmware offering 4 user definable window areas and support multi-size international fonts. Scroll and flash with graphic upload functions.
  • 256 x 64 Dot graphic
  • High brightness blue green display
  • -20 to 70°C Operating temperature range
  • 11 multi sized fonts
  • High speed 8-bit parallel interface
  • Asynchronous RS232 serial interface
  • Economic low profile modules
  • Scroll + image + fill commands

Applications

Imaging, Video & Vision, Communications & Networking

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
256 x 64

:
28.65mm x 115.05mm

:
Dot Graphic

:
4.75V

:
5.25V

:
-

:
-20°C

:
70°C

:
Parallel, RS-232

:
-
