FRDM-MCXA153
Freedom Development Board, MCXA153, 32bit, ARM Cortex-M33, Quick Start Guide, USB Type-C Cable

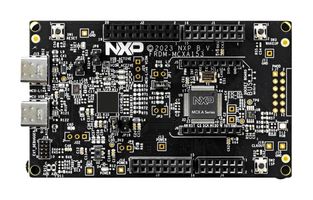

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | FRDM-MCXA153Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4326152 |
| Your Part Number | |
| Technical Datasheet |
41 In Stock
Need more?
41 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM62.110 |
Price for:Each
Minimum: 1
Multiple: 1
RM62.11
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | FRDM-MCXA153Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4326152 |
| Technical Datasheet | |
| Silicon Manufacturer | NXP |
| No. of Bits | 32bit |
| Silicon Family Name | MCXA15x |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M33 |
| Silicon Core Number | MCXA153 |
| Kit Contents | Freedom Development Board MCXA153, Quick Start Guide, USB Type-C Cable |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
FRDM-MCXA153 is a FRDM development board for MCX A14x/A15x MCUs. It is a compact and scalable development boards for rapid prototyping of MCX A14 and A15 MCUs. It offers industry standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger.
- MCXA15x Arm Cortex®-M33 core
- Up to 128KB flash with up to 32KB RAM with 8KB ECC, LPLUART, LPSPI, LPI²C, FS USB, DMA and LDO
- FS USB ports with USB Type-C connector for device functionality
- HS USB Type-C connectors (On-board MCU-Link debugger)
- SPI/I²C/UART connector (Arduino, PMOD/mikroBUS, DNP)
- Wi-Fi connector (Arduino, PMOD/mikroBUS, DNP)
- On-board MCU-link debugger with CMSIS-DAP, JTAG/SWD connector
- P3T1755DPJ I3C/I²C temperature sensor
- RGB user LED, plus reset, ISP, wake up buttons
Contents
FRDM-MCXA153 board hardware assembly, Quick start guide, USB Type-A to Type-C cable.
Technical Specifications
| Silicon Manufacturer | NXP |
|---|---|
| Silicon Family Name | MCXA15x |
| Core Sub-Architecture | Cortex-M33 |
| Kit Contents | Freedom Development Board MCXA153, Quick Start Guide, USB Type-C Cable |
| SVHC | No SVHC (27-Jun-2024) |
| No. of Bits | 32bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | MCXA153 |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84715000 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .161728 |
