FRDM-MCXC041
Development Kit, MCXC041VFK, 32bit, ARM Cortex-M0+
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | FRDM-MCXC041Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4558001 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM82.810 |
Product Information
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | FRDM-MCXC041Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4558001 |
| Technical Datasheet | |
| Silicon Manufacturer | NXP |
| No. of Bits | 32bit |
| Silicon Family Name | MCX C |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M0+ |
| Silicon Core Number | MCXC041VFK |
| Kit Contents | Development Board MCXC041VFK, USB 2.0 Type-A to Type-C Cable |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview

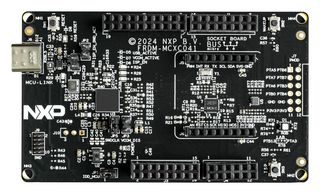

FRDM-MCXC041 is a FRDM development board for MCX C041 MCUs. It is a compact and scalable development board for rapid prototyping of MCX C041 MCU. It offers industry-standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces and onboard MCU-Link debugger. Suitable for industrial (air conditioning (AC), brushless DC motor (BLDC) control, electricity meter, industrial HMI), motor drives (Permanent Magnet Synchronous Motor (PMSM), vital signs monitors), smart city (smart lock), smart home (home security and surveillance) applications.
- MCXC041 Arm™ Cortex™ -M0+ core at 48MHz with optimized performance efficiency
- Up to 32KB flash and 2KB RAM
- Connectivity: FS USB-type C connector, SPI/I²C/UART connector (mikroBUS, Pmod™ *DNP)
- Connectivity: Wi-Fi connector (mikroBUS, Pmod™ *DNP)
- Debug: On-board MCU-Link debugger with CMSIS-DAP and SWD connector
- Sensor: FXLS8974CFR3 3-axis accelerometer and NTC temperature sensor
- Expansion options: Arduino® header, FRDM header, Pmod™ *DNP and mikroBUS™
- RGB user LED, Reset, ISP, wake-up buttons user interface
Contents
FRDM-MCXC041, Quick start guide, USB cable Type-C.
Technical Specifications
| Silicon Manufacturer | NXP |
|---|---|
| Silicon Family Name | MCX C |
| Core Sub-Architecture | Cortex-M0+ |
| Kit Contents | Development Board MCXC041VFK, USB 2.0 Type-A to Type-C Cable |
| SVHC | No SVHC (27-Jun-2024) |
| No. of Bits | 32bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | MCXC041VFK |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | 3A991.a.2 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0003 |
