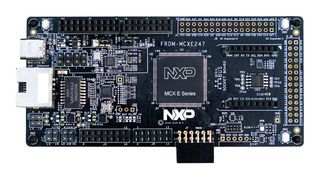

FRDM-MCXE247
Freedom Development Board, MCXE247, MCXE24x Family, ARM, Cortex-M4F, 32bit
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | FRDM-MCXE247Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4730439 |
| Your Part Number | |
| Technical Datasheet |
11 In Stock
4 more incoming. You can reserve stock now
11 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM139.460 |
Price for:Each
Minimum: 1
Multiple: 1
RM139.46
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | FRDM-MCXE247Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4730439 |
| Technical Datasheet | |
| Silicon Manufacturer | NXP |
| No. of Bits | 32bit |
| Silicon Family Name | MCXE24x |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4F |
| Silicon Core Number | MCXE247 |
| Kit Contents | FRDM Development Board MCXE247 |
| Product Range | - |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
FRDM-MCXE247 is a FRDM development board for MCX E245/246/247 MCUs. It offers industry-standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Suitable for consumer (Air Conditioning (AC), safe appliances, small and medium appliances), Industrial (BLDC control, energy management, Energy Storage System (ESS), heat meter, motor control, Permanent Magnet Synchronous Motor (PMSM)) applications.
- MCX E247 general-purpose 32bit MCU based on Arm Cortex M4F
- Up to 112MHz CPU performance with DSP and FPI support, up to 2MB flash, up to 256kB SRAM
- Connectivity: CAN/I3C/SPI/I²C/UART connector (Arduino, PMOD/mikroBUS, DNP)
- 10/100Mbit/s (RMII) LAN8741 Ethernet PHY and RJ45
- Debug: on-board MCU-Link debugger with CMSIS-DAP and JTAG/SWD connector
- Sensor: FXLS8974CFR3 I²C sensor and magnetic switch NMH1000
- Expansion option: Arduino® & FRDM header, Pmod™ *DNP, mikroBUS™, FlexIO/LCD and FlexIO/camera header
Contents
FRDM-MCXE247, Quick start guide, USB cable Type-C.
Technical Specifications
| Silicon Manufacturer | NXP |
|---|---|
| Silicon Family Name | MCXE24x |
| Core Sub-Architecture | Cortex-M4F |
| Kit Contents | FRDM Development Board MCXE247 |
| SVHC | No SVHC (21-Jan-2025) |
| No. of Bits | 32bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | MCXE247 |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84715000 |
| US ECCN: | 5A002.a.2 |
| EU ECCN: | 5A002.a.2 |
| RoHS Compliant: | To be advised |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
