S32K14WEVB-Q064
Evaluation Board, S32K144W, 32bit, ARM, Cortex-M4F

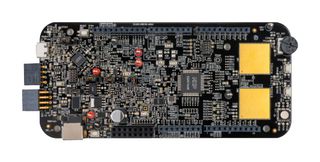

Image is for illustrative purposes only. Please refer to product description.
2 In Stock
Need more?
2 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM891.690 |
Price for:Each
Minimum: 1
Multiple: 1
RM891.69
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
Product Overview
S32K14WEVB-Q064 is an evaluation and development board for general purpose industrial and automotive applications with higher demands for ambient operating temperature range. Based on the 32-bit Arm® Cortex®-M4F S32K144W AEC-Q100 Grade 0 qualified (-40° C to +150° C Ta), the S32K14WEVB-Q064 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.
- 32-bit Cortex-M4F based S32K144 MCU
- UJA1169TK: Mini high-speed CAN system basis chip
- Transceivers: TJA1027: LIN 2.2A/SAE J2602 transceiver and TJA1145ATK: high speed CAN transceiver
- OpenSDA: Serial and Debug Adapter with support for several industry-standard debug interfaces
- Easy access to the MCU I/O header pins for prototyping
- Small form factor and low cost
- On-board connectivity for CAN, LIN, UART/SCI
- Flexible power supply options: micro USB or external 12V supply
- 2 x touchpads, 1 x potentiometer, 1 x RGB LED, 2 x push buttons
Technical Specifications
Silicon Manufacturer
NXP
Silicon Family Name
S32K1
Core Sub-Architecture
Cortex-M4F
Kit Contents
Eval Board S32K144W
SVHC
No SVHC (27-Jun-2024)
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
S32K144W
Product Range
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:5A992.c
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.02
