| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | UCANS32K1SICCopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 3941709 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM230.280 |
Product Information
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | UCANS32K1SICCopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 3941709 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | 0 |
| Silicon Manufacturer | NXP |
| Silicon Core Number | - |
| Product Range | - |
| Kit Contents | Evaluation Board UCANS32K1SIC, DCD-LZ Debug Adapter W/Cable, CAN-TERM-BRD W/Cable, CAN Cable |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview

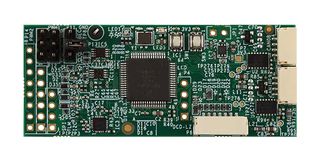

UCANS32K1SIC is a CAN signal improvement capability (SIC) evaluation board designed for both automotive and industrial applications. CAN SIC enables more complex networks and CAN FD communication up to 8 Mbps by reducing the effects of signal ringing. The UCANS32K1SIC provides two CAN SIC interfaces and is based on the 32-bit Arm® Cortex®-M4 based S32K1 microcontroller family with access to ports on the processor. Also, the UCANS32K1SIC features EdgeLock® SE050 secure element for authentication and encryption development.
- Dual CAN FD PHYs with dual connectors for daisy chain operation
- PX4 / DroneCode connector standard compliant
- DCD-LZ debug interface with SWD+Console / UART
- RGB LED
- Programmable user buttons (e.g., for arming)
- UART with full handshaking and 5V / 3V switchable voltage level
- SocketCAN CAN network driver
- I2C, SPI interface
- RC-PWM power output with internal or BEC / external power
- Overcurrent protection
Contents
1 x UCANS32K1SIC board, 1 x DCD-LZ debug adapter w/cable (console and program), 1 x CAN-TERM-BRD w/ cable (RevB with MicroUSB input), 1 x CAN cable with both ends (JST-GH 4 pin 200mm).
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | NXP |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
| Application Sub Type | 0 |
|---|---|
| Silicon Core Number | - |
| Kit Contents | Evaluation Board UCANS32K1SIC, DCD-LZ Debug Adapter W/Cable, CAN-TERM-BRD W/Cable, CAN Cable |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Bulgaria Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02 |
