LC201-300
Load Cell, 2 mV / V, 300 lb, 10 VDC, LC201 Series

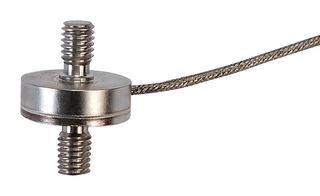

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | OMEGA |
|---|---|
| Manufacturer Part No | LC201-300Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3794991 |
| Product Range | LC201 Series |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM4,834.960 |
Price for:Each
Minimum: 1
Multiple: 1
RM4,834.96
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | OMEGA |
|---|---|
| Manufacturer Part No | LC201-300Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3794991 |
| Product Range | LC201 Series |
| Technical Datasheet | |
| Load Capacity | 300lb |
| Load Cell Type | Subminiature Compression |
| Supply Voltage | 10VDC |
| Weight Capacity | 300lbf |
| Excitation Voltage Min | - |
| Excitation Voltage Max | 15VDC |
| Cell Output mV / V | 2 |
| Sensor Output Type | Ratiometric |
| Connection Type | 4 Conductor Cable |
| Linearity | 1% |
| Cable Length - Metric | 1.5m |
| Cable Length - Imperial | 5ft |
| Operating Temperature Min | -54°C |
| Operating Temperature Max | 121°C |
| Product Range | LC201 Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
LC201 series sub-miniature tension compression load cell is designed for the demanding environment of industrial automation and robotics. With a diameter of only 19mm and all stainless steel construction, it can fit into small systems and survive harsh environments. The LC201 delivers high accuracy and long term reliability in a subminiature package.
- Dual mounting studs for easy installation
- 5-point calibration provided
- 10VDC, 15VDC maximum excitation
- 2mV/V nominal output
- ±1.0% FSO linearity, hysteresis, repeatability combined accuracy
- Operating temperature range from -54 to 121°C
- IP54 rated
- Capacity is 300lb
- Stainless steel construction
Technical Specifications
| Load Capacity | 300lb |
|---|---|
| Supply Voltage | 10VDC |
| Excitation Voltage Min | - |
| Cell Output mV / V | 2 |
| Connection Type | 4 Conductor Cable |
| Cable Length - Metric | 1.5m |
| Operating Temperature Min | -54°C |
| Product Range | LC201 Series |
| Load Cell Type | Subminiature Compression |
|---|---|
| Weight Capacity | 300lbf |
| Excitation Voltage Max | 15VDC |
| Sensor Output Type | Ratiometric |
| Linearity | 1% |
| Cable Length - Imperial | 5ft |
| Operating Temperature Max | 121°C |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90160090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Not applicable |
| RoHS Phthalates Compliant: | Not applicable |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .069853 |
