OSTW-K-M

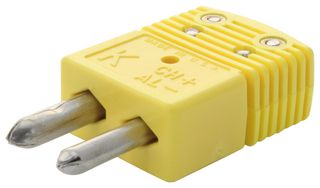

Thermocouple Connector, Standard, Yellow, OSTW Series, Type K, Plug, ANSI Colour Coded
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | OMEGA |
|---|---|
| Manufacturer Part No | OSTW-K-MCopy |
| Manufacturer Standard Lead Time | 5 weeks |
| Order Code | 2978112 |
| Product Range | OSTW Series |
| Your Part Number | |
| Technical Datasheet |
423 In Stock
Need more?
423 Delivery in 1-2 Business Days(SG stock)
| Quantity | Price |
|---|---|
| 1+ | RM36.060 |
Price for:Each
Minimum: 1
Multiple: 1
RM36.06
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | OMEGA |
|---|---|
| Manufacturer Part No | OSTW-K-MCopy |
| Manufacturer Standard Lead Time | 5 weeks |
| Order Code | 2978112 |
| Product Range | OSTW Series |
| Technical Datasheet | |
| Sensor Type | Thermocouple |
| Connector Style | Standard (Yellow) |
| No. of Pins | 2Pins |
| Calibration Standard | ANSI |
| Operating Temperature Min | -29°C |
| Operating Temperature Max | 180°C |
| Product Range | OSTW Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
OSTW series glass filled nylon thermocouple connector with round pin 2 pole TC connectors. It connect or extend TC wire and cable to thermocouple sensors, temperature instrumentation and process controllers. The contact washer feature allows the installer to use a straight wire strip. This greatly cuts installation/termination time and eliminates the torque that is normally associated with wire that is looped around a termination screw.
- Type K male connector with window
- Quick connect contact washers
- ANSI colour code
- Rated to 180°C (356°F)
- Accepts stranded or solid wire up to size 14AWG
- Available with quick wiring caps
- Captive cover screws
Technical Specifications
| Sensor Type | Thermocouple |
|---|---|
| No. of Pins | 2Pins |
| Operating Temperature Min | -29°C |
| Product Range | OSTW Series |
| Connector Style | Standard (Yellow) |
|---|---|
| Calibration Standard | ANSI |
| Operating Temperature Max | 180°C |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (2)
Alternatives for OSTW-K-M
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .014969 |
