EOLD-355-525
UV-A Emitter, 360nm, 1.2mW, 15° Half Intensity, 3.6V/25mA Forward, Top View Through Hole, T-1 3/4

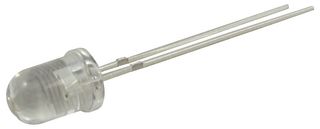

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | EPIGAP |
|---|---|
| Manufacturer Part No | EOLD-355-525Copy |
| Order Code | 2313511 |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | EPIGAP |
|---|---|
| Manufacturer Part No | EOLD-355-525Copy |
| Order Code | 2313511 |
| Technical Datasheet | |
| UV LED Type | UV-A |
| Wavelength | 360nm |
| Radiant Power | 1.2mW |
| Angle of Half Intensity | 15° |
| UV LED Case Style | Top View Through Hole, T-1 3/4 (5mm) |
| Forward Current If | 25mA |
| Forward Voltage | 3.6V |
| Product Range | - |
| Technology / Material | AlGaN |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
The EOLD-355-525 is a Through-hole LED with 5mm dome-shaped plastic lens.
- High power, high-speed and high reliability
- Narrow beam angle
- 85mA at 5V Reverse current
- 100mW Power dissipation
Applications
Industrial
Technical Specifications
| UV LED Type | UV-A |
|---|---|
| Radiant Power | 1.2mW |
| UV LED Case Style | Top View Through Hole, T-1 3/4 (5mm) |
| Forward Voltage | 3.6V |
| Technology / Material | AlGaN |
| Wavelength | 360nm |
|---|---|
| Angle of Half Intensity | 15° |
| Forward Current If | 25mA |
| Product Range | - |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85414100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00121 |
