PACE 8007-0598

Soldering and Rework Kit, MBT360, 3 Handpieces, 230 VAC, 50 Hz, 240 W

PACE 8007-0598
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
PACE PACE
Manufacturer Part No:
8007-0598
Order Code:
3935355
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
8007-0598   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (TUK SGACK902S Keystone Coupler)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
3 Handpieces

:
TUK SGACK902S Keystone Coupler

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

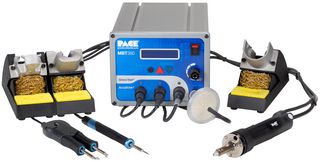

8007-0598 is a MBT360 E multi-channel soldering and rework station with TD-200, MT-200 and SX-100 hand pieces. MBT360 allows the user to customize their workbench with any AccuDrive or Sensatemp hand piece for maximum capability, versatility and economy. The standard system includes the TD-200 AccuDrive soldering iron which provides unsurpassed thermal performance on the heaviest boards at the most accurate temperatures for ultimate process control and maximum throughput. The standard system also features the new MT-200 AccuDrive MiniTweez precision thermal tweezer which safely reworks a wide variety of surface mount components, even as small as 0201's and 01005's on the most tightly-packed assemblies. Both the TD-200 and MT-200 hand pieces come standard with Instant Set Back cubbies. The system also comes standard with the SX-100 Sodr-X-Tractor desoldering hand piece for surface mount land prep, rapid thru-hole desoldering and surface mount component removal.
  • 230VAC, 50Hz (240watts maximum) power
  • Two AccuDrive® ports, one SensaTemp® port and the self-contained auto Snap-Vac® pump
  • ISB and auto-off capability increases tip-life up to 6 times and greatly reduces tip costs
  • Meet & exceed ANSI/J-STD-001 absolute temperature accuracy requirement without need for calibration
  • Backlit, digital LCD screen displays set and actual temperatures of all three channels
  • Password protected settings allow the operator to work within an approved temperature range

Contents

Multi-channel soldering and rework station, TD-200 AccuDrive® soldering iron, MT-200 AccuDrive® MiniTweez® hand piece, SX-100 SensaTemp® Sodr-X-Tractor® hand piece.

Available for back order

More stock available to supplier lead times which is approximately 6/3/24

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

Notify me when back in stock

RM16,760.71

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
  • 1+
Quantity Price Your Price


1+ RM16,760.71
