| Manufacturer | PHOENIX CONTACT |
|---|---|
| Manufacturer Part No | 1827596Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2493750 |
| Product Range | MC |
| Also Known As | 1827596, DFK-MC 1,5/ 8-GF-3,81 |
| Your Part Number | |
| Technical Datasheet |
536 In Stock
Need more?
3 Delivery in 1-2 Business Days(SG stock)
533 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM48.010 |
| 10+ | RM39.460 |
| 100+ | RM38.680 |
| 250+ | RM37.890 |
| 500+ | RM37.100 |
Price for:Each
Minimum: 1
Multiple: 1
RM48.01
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Manufacturer Part No | 1827596Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2493750 |
| Product Range | MC |
| Also Known As | 1827596, DFK-MC 1,5/ 8-GF-3,81 |
| Technical Datasheet | |
| Gender | Header |
| Pitch Spacing | 3.81mm |
| No. of Positions | 8Ways |
| Rated Current | 8A |
| Rated Voltage | 160V |
| Block Orientation | Through Hole Vertical |
| Product Range | MC |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

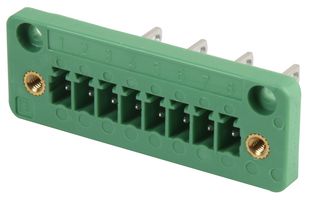

The DFK-MC 1,5/ 8-GF-3,81 is a 8-position 8A green Terminal Block Header with solder/slip-on connection and direct mounting. The 1827596 has tin contact surface with polyamide housing.
- UL94V-0 Flammability rating
- Plug-in connection for corresponding plugs with 3.81 mm pitch
- Optional solder or 2.8mm push on terminals
- Separate screw connection with the device/housing panel
- Ideal for use as headers for assembly in a device/housing panels
- Numbered ID on front and rear
Applications
Industrial
Technical Specifications
| Gender | Header |
|---|---|
| No. of Positions | 8Ways |
| Rated Voltage | 160V |
| Product Range | MC |
| Pitch Spacing | 3.81mm |
|---|---|
| Rated Current | 8A |
| Block Orientation | Through Hole Vertical |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Poland Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0056 |
