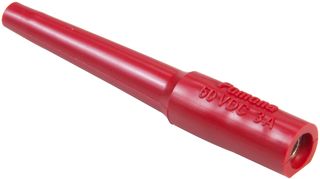

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | POMONA |
|---|---|
| Manufacturer Part No | 3564-2Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2406335 |
| Product Range | 3564 Series |
| Your Part Number | |
| Technical Datasheet |
13 In Stock
Need more?
13 Delivery in 1-2 Business Days(SG stock)
| Quantity | Price |
|---|---|
| 1+ | RM66.310 |
Price for:Each
Minimum: 1
Multiple: 1
RM66.31
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | POMONA |
|---|---|
| Manufacturer Part No | 3564-2Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2406335 |
| Product Range | 3564 Series |
| Technical Datasheet | |
| Gender | Jack |
| Connector Mounting | - |
| Current Rating | 24A |
| Voltage Rating | 2.5kV |
| Contact Plating | Gold Plated Contacts |
| Connector Colour | Red |
| Contact Material | Copper Alloy |
| Contact Termination Type | - |
| Product Range | 3564 Series |
| SVHC | No SVHC (15-Jun-2015) |
Product Overview
The 3564-2 is a red banana jack to 12AWG pin socket Test Adapter for rapid testing of the hard-to-get to pins of multi-pin connectors. It has bright tin-plated brass jack and a gold-plated over copper plating copper alloy socket. The flexible tip allows testing of adjacent contacts. The full insulation protects against shorting or contact damage.
- 55°C Maximum operating temperature
Applications
Industrial
Warnings
Risk of electric shock.
Notes
Exclusive 5% discount (already applied) on selected items from the Pomona Electronics range, valid until 31/12/2026. Terms and conditions apply.
Technical Specifications
| Gender | Jack |
|---|---|
| Current Rating | 24A |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Copper Alloy |
| Product Range | 3564 Series |
| Connector Mounting | - |
|---|---|
| Voltage Rating | 2.5kV |
| Connector Colour | Red |
| Contact Termination Type | - |
| SVHC | No SVHC (15-Jun-2015) |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (15-Jun-2015) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005 |
