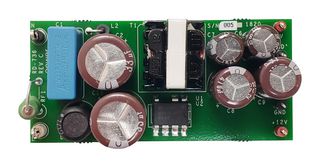

Reference Design Board, LNK3696P, Embedded Power Supply
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 22 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM484.990 |
Price for:Each
Minimum: 1
Multiple: 1
RM484.99
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPOWER INTEGRATIONS
Manufacturer Part NoRDK-736
Order Code3580553
Technical Datasheet
SVHCNo SVHC (21-Jan-2025)
Product Overview
7W, wide range input, dual output, non-isolated flyback converter using LinkSwitch XT2-900 LNK3696P. This converter is designed to provide dual output of 5V at 200mA and 12V at 500mA from a wide input voltage range of 85VAC to 440VAC. The highly integrated solution has a robust 900V rated power MOSFET and greater than 80% efficiency at full load condition.
- Output voltage regulation ( 12V ±10%, 5V ±5%)
- Programmable current limit selection feature of LinkSwitch-XT2-900
- Extremely fast transient response independent of load timing
- Less than 120mW no-load input power at 230VAC
- Greater than 6dB conducted EMI margin
- No optocoupler or zener diode required for regulation
- Can withstand up to 450VAC line input
