S40000
CRYSTAL Miniature 40KHZ

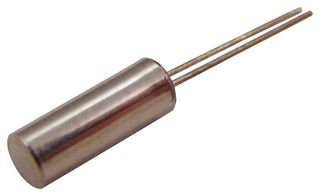

Image is for illustrative purposes only. Please refer to product description.
78 In Stock
Need more?
78 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM9.930 |
| 10+ | RM9.070 |
| 25+ | RM8.940 |
| 50+ | RM8.810 |
| 100+ | RM8.740 |
Price for:Each
Minimum: 1
Multiple: 1
RM9.93
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPROWAVE
Manufacturer Part NoS40000
Order Code1007372
Technical Datasheet
Product Range-
Frequency Nom40kHz
Crystal Frequency40kHz
Frequency Tolerance + / -60ppm
Frequency Stability + / -45ppm
Load Capacitance12.5pF
Crystal Case / PackageCylinder Radial, 8mm x 3mm Dia
No. of Pins2Pins
Crystal MountingThrough Hole
Operating Temperature Min-10°C
Operating Temperature Max70°C
SVHCNo SVHC (23-Jan-2024)
Product Overview
The S40000 is a miniature tuning fork quartz Crystal Oscillator offers 40kHz frequency and ±60PPM tolerance at 25°C.
- 35kΩ Series resistance
- 2.3pF Shunt capacitance
Applications
Industrial
Technical Specifications
Product Range
-
Crystal Frequency
40kHz
Frequency Stability + / -
45ppm
Crystal Case / Package
Cylinder Radial, 8mm x 3mm Dia
Crystal Mounting
Through Hole
Operating Temperature Max
70°C
Frequency Nom
40kHz
Frequency Tolerance + / -
60ppm
Load Capacitance
12.5pF
No. of Pins
2Pins
Operating Temperature Min
-10°C
SVHC
No SVHC (23-Jan-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85416000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000605
