RADIALL R284C0351028

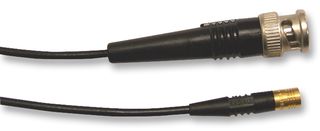

RF / Coaxial Cable Assembly, BNC Plug to SMB Plug, RG174, 50 ohm, 3.28 ft, 1 m, Black

RADIALL R284C0351028

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
R284C0351028   Datasheet
Supply Frame Models Link
See all Technical Docs

Product Range Selector (TUK SGACK902S Keystone Coupler)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

BNC Plug to SMB Plug






TUK SGACK902S Keystone Coupler

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Product Overview

The R284C0351028 from Radial is a cable assembly. It has BNC straight plug crimp type cable 2.6/50S (R141.075.000) at one side and SMB straight plug crimp type cable 2.6/50+75S (R114.075.000) at other side.
  • Overall length is 1m
  • Black colour RG174 flexible cable (2.6/50S)
  • Outer diameter is 2.79mm
  • Characteristic impedance of 50 ohm
  • Frequency range from DC to 1GHz
  • Maximum voltage rating of 335Veff
  • Insulation resistance of 1000Mohm (minimum)
  • Insertion loss of 1.64dB maximum at 1GHz and 20°C
  • Recommend minimum bend radius of 10mm


Industrial, RF Communications

485 In stock Need more?

485 UK stock available for 3-4 business days delivery

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice


Pricing is unavailable. Please contact customer services.

Price for:
Multiple: 1 Minimum: 1
  • 1+
Quantity Price Your Price
1+ RM192.23
