SC1771

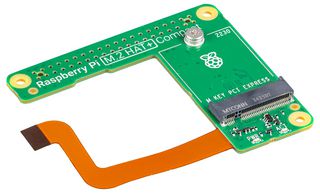

SC1771 is a Raspberry Pi compact M.2 HAT+ mechanical adapter board. It enables you to connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5’s PCIe 2.0 interface, supporting fast (up to 500MB/s) data transfer to and from NVMe drives and other PCIe accessories. Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mmpitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices.

• Supports single-lane PCIe 2.0 interface (500MB/s peak transfer rate)
• Supports devices that use the M.2 M key edge connector
• Supports devices with the 2230 or 2242 form factor
• Capable of supplying up to 3A to connected M.2 devices
• Includes power and activity LEDs
• Conforms to the Raspberry Pi HAT+ specification
• Operating temperature: 0°C to 50°C (ambient)

Contents

Raspberry Pi compact M.2 HAT+ mechanical adapter board, Ribbon cable, 16mm stacking header, Threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral.
