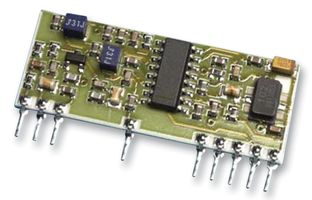

AM-RRQ3-433

The RF Solutions AM Superheterodyne Receivers are compact modules, which can be used to capture undecoded data from any equivalent AM Transmitter, such as R.F. Solutions AM-RT4 range of transmitters. Receivers are manufactured on a ceramic substrate, the RRQ3 incorporates an LC Filter, pre amplifier front end and PLL Synthesiser for high sensitivity and reduced EMC emissions. The RRQ5 incorporates a SAW Filter to provide a further increase in the module sensitivity. The modules show a very high frequency stability over a wide operating temperature even when subjected to mechanical vibrations or manual handling offering a very cost effective solution.

• Compact hybrid module
• Compatible with RF solutions AM transmitters
• Low current consumption
• Laser trimmed inductor gives extremely high frequency sensitivity and stability
• Front end pre-amplifier reduces EMC emissions from the antenna
• CMOS/TTL compatible output
• Requires no radio license to operate
• ETSI300-220 compliance (Super Heterodyne)

Applications

Wireless, RF Communications
