| Manufacturer | RF SOLUTIONS |
|---|---|
| Manufacturer Part No | GAMMA62M-89SCopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 4070613 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 11 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM116.450 |
| 5+ | RM114.130 |
Price for:Each
Minimum: 1
Multiple: 1
RM116.45
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RF SOLUTIONS |
|---|---|
| Manufacturer Part No | GAMMA62M-89SCopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 4070613 |
| Technical Datasheet | |
| Modulation / Demodulation Type | - |
| Frequency RF | 915MHz |
| Output Power | 22dBm |
| Operating Voltage | 3.6V |
| Supply Current | 118mA |
| Product Range | - |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview

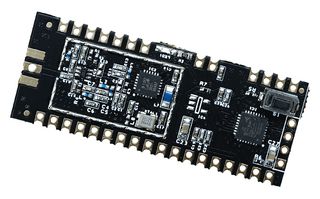

GAMMA62M provides a simple “MODEM in a Module” radio link to replace a serial data cable. The user interface is standard low Voltage RS232, all RF operation is automatically performed internally (packetization, error checking etc). GAMMA62 operates on the European 868 band or USA/Australia 918 band with either high speed FM or spread spectrum, Modes 1 to 7 trading operating range with Data rate.
- Suitable for remote networking, cable replacement, remote data logging and meter reading
- Intelligent RF “modem in a module”
- User Selectable 868/915MHz Operation
- FM / Spread Spectrum Secure RF
- Simple TX / RX Serial interface
- CTS/RTS handshake
- Range up to 20Km
- Transmit Power 158mW (+22dBm)
- Receiver Sensitivity –148dBm
- Host data rates up to 57,600 baud
- RF Data Rates to 115Kbps
- No external components
- LED Shows Data Flow
- Secure data protocol
- Ultra low power 2.4V - 3.6V operation
- CE compliant for licence free use
Technical Specifications
| Modulation / Demodulation Type | - |
|---|---|
| Output Power | 22dBm |
| Supply Current | 118mA |
| SVHC | No SVHC (07-Nov-2024) |
| Frequency RF | 915MHz |
|---|---|
| Operating Voltage | 3.6V |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85176100 |
| US ECCN: | 5A991 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005 |
