HIRK-433AP

Superheterodyne Receiver Decoder, AM, 433MHz

RF SOLUTIONS HIRK-433AP

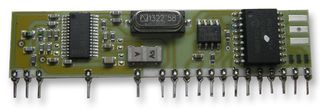

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
HIRK-433AP
Order Code:
1676035
Technical Datasheet:
HIRK-433AP   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Receiver

:
4 Channel

:
433Hz

:
100m

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

A single in line (SIL) hybrid module providing complete four channel Radio Receiver/Decoder systems. When used with the 110 or 120series pocket keyfobs a complete remote telemetry system is obtained with up to 150 metres range. The module consists of a front end super-heterodyne or super-regen RF receiver with an embedded microcontroller decoding a highly secure Keeloq protocol signal. The module has an easy-to-use 'LEARN' facility, and is capable of learning up to 50 unique keyfob encoders. The module requires a 5V power supply and provides a direct LED drive showing data reception and four digital data outputs. The outputs may be programmed for momentary or latching configuration. The modules have flash re-programmability feature to enable field re-programming of the controller.
  • Miniature RF Receiver and Decoder SIL modules
  • Advanced Keeloq Decoding
  • Advanced laser trimmed ceramic module
  • AM range up to 100m
  • Easy to learn transmitter feature
  • Outputs, momentary or latching & serial data
  • Flash re-programmable
  • 3dB bandwidth: ±400kHz
  • Flash re-programmable
  • HIR6 low power version (<1mA)

Applications

Communications & Networking, Industrial, Wireless, Security, RF Communications
