QAM-RX10-433

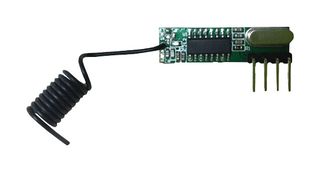

The QAM-RX10-433 from RF Solutions is a 433MHz AM super heterodyne receiver module. This module provides a complete radio receiver which can be used to receive undecoded data from the range of Quasar (UK) transmitter modules. It is very compact form factor and requires only a power connection to operate. Data can be fed directly into a microprocessor or decoding device thus keeping the component count down and ensuring a low hardware cost. Receiver is compatible, producing a CMOS/TTL output and only require connections to power and antenna. It is used in car security systems, automation systems, remote gate controls, remote sensing, data capture and sensor reporting.

• 3.5VDC to 5.5VDC operating voltage
• Miniature size of 30 x 8mm, 30m range
• Enhanced noise immunity internal PLL
• Stable operating frequency
• Low power consumption
• High sensitivity of -123dBm at 433MHz
• Supply current of 6mA
• Working frequency of 433.92MHz, turn on time of 30mS (typ) and 10Kbps data rate
• RF sensitivity (VCC=5V, 1Kbps AM 99% square wave modulation) of -108dBm at 433MHz
• Operating temperature range from -25°C to +85°C

Applications

RF Communications, Wireless, Sensing & Instrumentation, Security
