| Manufacturer | ROHDE & SCHWARZ |
|---|---|
| Manufacturer Part No | LCX200Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3910778 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM42,404.920 |
Price for:Each
Minimum: 1
Multiple: 1
RM42,404.92
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ROHDE & SCHWARZ |
|---|---|
| Manufacturer Part No | LCX200Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3910778 |
| Technical Datasheet | |
| LCR Type | Bench |
| Test Frequency Max | 500kHz |
| Inductance Measure Max | - |
| Capacitance Measure Max | - |
| Resistance Measure Max | 100Mohm |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview

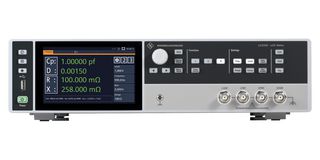

LCX200 LCR meter provides the full range of measurements to characterize resistors, capacitors and inductors, results are displayed in absolute, relative or average values. Because of logging capacities and faster measurements, LCX is more suitable in manufacturing applications.
- Measurement functions L, C, R, Z, X, Y, G, B, D, Q, φ, Δ, M, N
- Measurement range from 4Hz to 500KHz
- Test signal voltage maximum is 10V, test signal current maximum is 200mA
Technical Specifications
| LCR Type | Bench |
|---|---|
| Inductance Measure Max | - |
| Resistance Measure Max | 100Mohm |
| SVHC | To Be Advised |
| Test Frequency Max | 500kHz |
|---|---|
| Capacitance Measure Max | - |
| Product Range | - |
