MXO38-BNDL

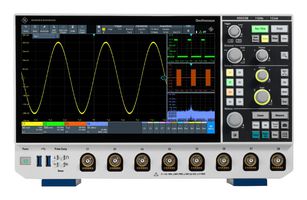

Oscilloscope Bundle, 8 Channel, MXO 3 Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerROHDE & SCHWARZ
Manufacturer Part NoMXO38-BNDLCopy
Manufacturer Standard Lead Time6 weeks
Order Code4919400
Product RangeMXO 3 Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM155,733.950 |
Price for:Each
Minimum: 1
Multiple: 1
RM155,733.95
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerROHDE & SCHWARZ
Manufacturer Part NoMXO38-BNDLCopy
Manufacturer Standard Lead Time6 weeks
Order Code4919400
Product RangeMXO 3 Series
Technical Datasheet
Kit ContentsMXO38 Mixed Signal Oscilloscope, 500MHz Passive Probe (10:1), Accessories Bag, Quick Start Guide
Product RangeMXO 3 Series
SVHCNo SVHC (04-Feb-2026)
Product Overview
MXO38-BNDL is a MXO 3 series 8-channel mixed signal oscilloscope bundle with 1GHz bandwidth. It combines high-performance acquisition hardware with advanced application software, making it suitable for complex embedded, automotive, aerospace and power electronics development requiring multiple synchronous measurement channels.
- Eight analogue channels for complex multi-channel measurements
- High-speed acquisition up to 5GSa/s
- 12bit vertical resolution with enhanced HD operating mode
- Waveform capture rate up to 4.5 million acquisitions per second
- Extended memory capacity up to 500Mpoints
- Integrated 50MHz arbitrary waveform generator
- Supports low-speed serial bus protocol analysis
- Automotive, aerospace and MIPI protocol decoding included
- Frequency response and power analysis applications included
- Compact design with large Full HD touchscreen display
Notes
Save up to 56% (already applied) on R&S ESSENTIALS Instrument Packages in Europe, until 30 September 2026.
Technical Specifications
Kit Contents
MXO38 Mixed Signal Oscilloscope, 500MHz Passive Probe (10:1), Accessories Bag, Quick Start Guide
SVHC
No SVHC (04-Feb-2026)
Product Range
MXO 3 Series
Technical Docs (1)
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:90302000
US ECCN:3A992.g
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):4
