ZNLE3-COM
Vector Network Analyser, PC Based, 1MHz to 3GHz, 3 Years, ZNLE Series

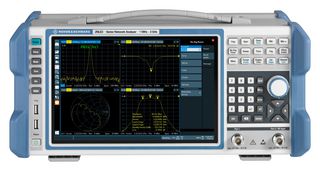

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | ROHDE & SCHWARZ |
|---|---|
| Manufacturer Part No | ZNLE3-COMCopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 3549292 |
| Product Range | ZNLE Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 8 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM89,862.420 |
Price for:1 Kit
Minimum: 1
Multiple: 1
RM89,862.42
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ROHDE & SCHWARZ |
|---|---|
| Manufacturer Part No | ZNLE3-COMCopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 3549292 |
| Product Range | ZNLE Series |
| Technical Datasheet | |
| Vector Network Analyzer Type | PC Based |
| Test Frequency Range | 1MHz to 3GHz |
| Sensitivity dBm | - |
| Manufacturer Warranty | 3 Years |
| Product Range | ZNLE Series |
| Plug Type | - |
| SVHC | To Be Advised |
Product Overview
- 3GHz, N connectors vector network analyser
- 26.4cm (10.1") diagonal WXGA colour LCD with touchscreen
- 1280 x 800 x 262144 (high colour, 125 dpi) resolution
- Two-port VNA with full S-parameter test set for bidirectional measurements on passive components
- Wide dynamic range of typical 120dB
- Supports USB front and rear panel connection
- Standard solid-state drive 32Gbyte (nom) internal storage
- Operating temperature range from +5°C to +40°C
- DVI-D connector (for external monitor)
Technical Specifications
| Vector Network Analyzer Type | PC Based |
|---|---|
| Sensitivity dBm | - |
| Product Range | ZNLE Series |
| SVHC | To Be Advised |
| Test Frequency Range | 1MHz to 3GHz |
|---|---|
| Manufacturer Warranty | 3 Years |
| Plug Type | - |
Technical Docs (13)
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Czech Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90308400 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 6 |
