RB-D62Q1552GA64
Reference Board Kit, ML62Q1552, 16Bit, nX-U16/100, General Purpose Microcontroller

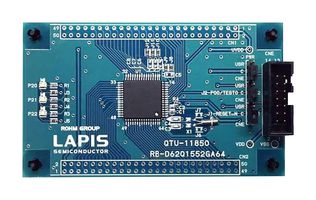

Image is for illustrative purposes only. Please refer to product description.
ManufacturerROHM
Manufacturer Part NoRB-D62Q1552GA64
Order Code4566836
Your Part Number
Technical Datasheet
2 In Stock
Need more?
2 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM250.390 |
Price for:Each
Minimum: 1
Multiple: 1
RM250.39
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerROHM
Manufacturer Part NoRB-D62Q1552GA64
Order Code4566836
Technical Datasheet
Silicon ManufacturerRohm Semiconductor
Silicon Core NumberML62Q1552
Kit Application TypeMicrocontroller
Application Sub TypeGeneral Purpose Microcontroller
Core ArchitecturenX-U16/100
Core Sub-Architecture-
Silicon Family NameML62Q1000
Kit ContentsReference Board ML62Q1552, User Manual
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview
RB-D62Q1552GA64 is a ML62Q1552 reference board that can be used for learning ‘how to use’ the ML62Q1552, on which the user needs to provide additional external components if necessary.
- Supported MCUs - ML62Q1550/ML62Q1551/ML62Q1552 (64 pin QFP⁄TQFP)
- Board is provided with ML62Q1552 (64 pin QFP)
- Mounted with the linked connector to EASE1000
- Through-holes for connecting the pins of LSI to external peripheral boards
- Power supply is selectable; supplied from the on-chip emulator EASE1000 or CN1-3pin /CN2-2pin
- Mounted with LED (P20,P21,P22)
- Mounted with crystal (32.768KHz)
- Operating voltage is +1.6V to +5.5V (supply the VDD with up to 1.8V or higher during power up)
- Supported emulators are EASE1000/EASE1000 V2 (sold separately)
- Board size is W56 × D94 × H15mm
Contents
ML62Q1552 (64PIN QFP) reference board, User's manual.
Technical Specifications
Silicon Manufacturer
Rohm Semiconductor
Kit Application Type
Microcontroller
Core Architecture
nX-U16/100
Silicon Family Name
ML62Q1000
Product Range
-
Silicon Core Number
ML62Q1552
Application Sub Type
General Purpose Microcontroller
Core Sub-Architecture
-
Kit Contents
Reference Board ML62Q1552, User Manual
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.022
