RB-D62Q1577TB100
Reference Board Kit, ML62Q1577, 16Bit, nX-U16/100, General Purpose Microcontroller

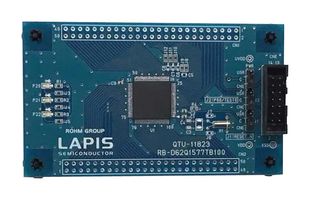

Image is for illustrative purposes only. Please refer to product description.
ManufacturerROHM
Manufacturer Part NoRB-D62Q1577TB100
Order Code4566837
Your Part Number
Technical Datasheet
2 In Stock
Need more?
2 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM229.770 |
Price for:Each
Minimum: 1
Multiple: 1
RM229.77
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerROHM
Manufacturer Part NoRB-D62Q1577TB100
Order Code4566837
Technical Datasheet
Silicon ManufacturerRohm Semiconductor
Silicon Core NumberML62Q1577
Kit Application TypeMicrocontroller
Application Sub TypeGeneral Purpose Microcontroller
Core ArchitecturenX-U16/100
Core Sub-Architecture-
Silicon Family NameML62Q1000
Kit ContentsReference Board ML62Q1577, User Manual
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview
RB-D62Q1577TB100 is a ML62Q1577 reference board. It can be used for learning how to use the ML62Q1577, on which adding external user components if necessary. Using ML62Q1577 reference board with LAPIS Semiconductor’s on-chip emulator EASE1000 delivered with the software development environments, help user’s software development and debugging and programming the Flash.
- Board is populated with ML62Q1577 100pin TQFP package
- Connector linked to EASE1000 is mounted
- Through-holes for connecting the pins of LSI to external peripheral boards
- The power supply is selectable, supplied from the on-chip emulator EASE1000 or CN1-3pin / CN2-2pin
- LED is mounted (P20, P21, P22)
- Crystal is mounted (32.768KHz)
- Operating voltage range from +1.6 to +5.5V (supply VDD with up to 1.8V or higher during power up)
- Board size is 55.88mm x 93.98mm
