202033E
Twist Drill Bit, HSS-G DIN1897, 3.3mm, 18mm Effective, 49mm Overall

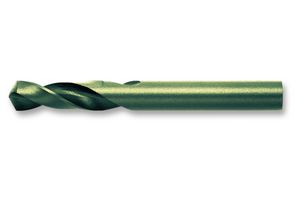

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RUKO |
|---|---|
| Manufacturer Part No | 202033ECopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 9700943 |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM17.760 |
| 5+ | RM15.820 |
Price for:Each
Minimum: 1
Multiple: 1
RM17.76
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RUKO |
|---|---|
| Manufacturer Part No | 202033ECopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 9700943 |
| Technical Datasheet | |
| Drill Bit Size Metric | 3.3mm |
| Drill Bit Size Imperial | - |
| Effective Length | 18mm |
| Overall Length | 49mm |
| Product Range | - |
Product Overview
202033E is a DIN 1897 type N HSS Co 5 ground twist drill bit with split point - short. Short and stable standard drill consisting of cobalt alloyed heavy-duty high-speed steel with higher heat-resistance. Ideally suitable for assembly work in thin-walled materials such as sheet steels, flat steels and profile steels. High security against fracture. For use in all handheld drilling machines.
- 49mm length, 3.3mm diameter and 18mm spiral length
- Cylindrical shaft
- Right hand cutting direction
- 25° - 30° spiral angle
- 130° point angle
- Shape C: split point tip grinding
- Normal groove profile, normal core and h8 tolerance
Technical Specifications
| Drill Bit Size Metric | 3.3mm |
|---|---|
| Effective Length | 18mm |
| Product Range | - |
| Drill Bit Size Imperial | - |
|---|---|
| Overall Length | 49mm |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Bosnia-Herzegovina Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 82075090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Not applicable |
| RoHS Phthalates Compliant: | Not applicable |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002 |
