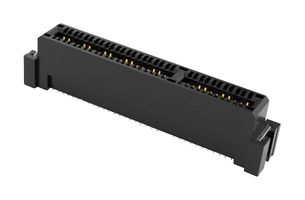

PCIE-G5-04-01-F-DP-A-WT-TR
Card Edge Connector, Dual Side, 1.57 mm, 64 Contacts, Surface Mount, Straight
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | SAMTEC |
|---|---|
| Manufacturer Part No | PCIE-G5-04-01-F-DP-A-WT-TRCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4079848 |
| Product Range | PCI EXPRESS Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM30.390 |
| 10+ | RM29.050 |
| 100+ | RM27.710 |
| 250+ | RM26.390 |
| 500+ | RM25.200 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
RM30.39
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | SAMTEC |
|---|---|
| Manufacturer Part No | PCIE-G5-04-01-F-DP-A-WT-TRCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4079848 |
| Product Range | PCI EXPRESS Series |
| Technical Datasheet | |
| Card Edge Connector Type | Dual Side |
| Card Thickness | 1.57mm |
| No. of Contacts | 64 Contacts |
| Connector Mounting | Surface Mount |
| Connector Body Orientation | Straight |
| Contact Termination Type | Solder |
| Contact Material | Copper Alloy |
| Contact Plating - Mating Side | Gold Flash Plated Contacts |
| Connector Body Material | LCP (Liquid Crystal Polymer) Body |
| Product Range | PCI EXPRESS Series |
| SVHC | No SVHC (04-Feb-2026) |
Technical Specifications
| Card Edge Connector Type | Dual Side |
|---|---|
| No. of Contacts | 64 Contacts |
| Connector Body Orientation | Straight |
| Contact Material | Copper Alloy |
| Connector Body Material | LCP (Liquid Crystal Polymer) Body |
| SVHC | No SVHC (04-Feb-2026) |
| Card Thickness | 1.57mm |
|---|---|
| Connector Mounting | Surface Mount |
| Contact Termination Type | Solder |
| Contact Plating - Mating Side | Gold Flash Plated Contacts |
| Product Range | PCI EXPRESS Series |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005679 |
