XB4BT845

Emergency Stop Switch, SPST-NO, SPST-NC, Push-Pull, Screw Clamp, 6 A, 120 V

XB4BT845 - Emergency Stop Switch, SPST-NO, SPST-NC, Push-Pull, Screw Clamp, 6 A, 120 V
XB4BT845 - Emergency Stop Switch, SPST-NO, SPST-NC, Push-Pull, Screw Clamp, 6 A, 120 V

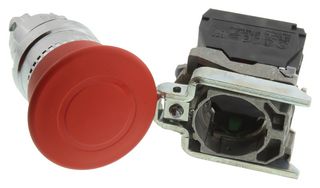

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
XB4BT845
Order Code:
2614826
Product Range
Harmony Series
Also Known As:
785901381020
Technical Datasheet:
XB4BT845   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
SPST-NO, SPST-NC

:
Push-Pull

:
Screw Clamp

:
6A

:
120V

:
-

:
Mushroom

:
IP66

:
Harmony Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The XB4BT845 is a single-pole double-throw (SPDT) Emergency Stop Pushbutton Switch with 1NO + 1NC slow-break silver alloy (Ag/Ni) contacts and screw clamp terminals. This pushbutton operator features round signaling unit head, push-pull reset, chromium-plated metal bezel, Zamak fixing collar, trigger action and mechanical latching red mushroom Ø40mm unmarked operator. This XB4 series pushbutton switch is suitable for use with the Harmony XB4 range product. It meets with the EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, IEC 60364-5-53, JIS C 4520, UL 508 and CSA C22.2 No 14 standards.
  • Green premium product
  • 300000 cycles Mechanical durability
  • IP66 Protection rating
  • IK03 Protection rating
  • -25 to 70°C Ambient air temperature range for operation

Applications

Automotive, Industrial, Commercial

Also Known As

785901381020

3 In stock Need more?

3 available for 3 - 4 business days delivery

RM232.03

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ RM232.03
