SEK-SLF3S-4000B
Evaluation Kit, SLF3S-0600F, Liquid Flow Sensor
| Manufacturer | SENSIRION |
|---|---|
| Manufacturer Part No | SEK-SLF3S-4000BCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3977736 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM1,594.180 |
Product Information
| Manufacturer | SENSIRION |
|---|---|
| Manufacturer Part No | SEK-SLF3S-4000BCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3977736 |
| Technical Datasheet | |
| Board Type | Evaluation Kit |
| IC / Module Used | SLF3S-4000B |
| Application Sub Type | Liquid Flow Sensor |
| Kit Contents | SLF3S-4000B Liquid Flow Sensor, SLF3x Mounting Clamp, SCC Sensor/Adapter Cable, Fluidic Connector |
Product Overview
EVALUATION KIT SLF3S-4000B is an evaluation kit to test and evaluate SLF3S-4000B liquid flow sensor. SLF3S-4000B is Sensirion's compact liquid flow sensor designed for high-volume applications. It builds on the latest generation CMOSens® sensor chip that is at the heart of Sensirion's flow sensing platform and allows achieving an outstanding performance.
- Maximum flow rate of 600ml/min (H₂O and IPA)
- I²C connector
Contents

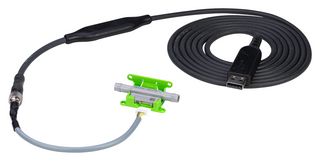

1 pc SLF3S-4000B liquid flow sensor, 1 pc SLF3x mounting clamp to enable mechanical fixation of the sensor, 1 pc SCC1-USB sensor cable with USB connector for plug-and-play connection to a PC, 1 pc adapter cable from 6-pin connector to 4-pin M8 which serves as link between sensor and SCC1-USB sensor cable, 15cm length, 1 pc ribbon cable from 6-pin connector to pigtail, 30cm length, PC software (Viewer & Data Export Tool).
Technical Specifications
| Board Type | Evaluation Kit |
|---|---|
| Application Sub Type | Liquid Flow Sensor |
| IC / Module Used | SLF3S-4000B |
|---|---|
| Kit Contents | SLF3S-4000B Liquid Flow Sensor, SLF3x Mounting Clamp, SCC Sensor/Adapter Cable, Fluidic Connector |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Switzerland Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90268020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | To be advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .3 |
