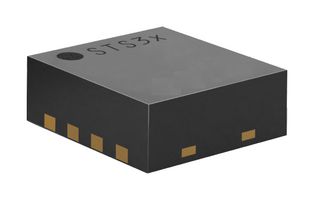

STS35-DIS
Temperature Sensor IC, Digital, ± 0.1°C, -40 °C, 125 °C, DFN, 8 Pins
| Manufacturer | SENSIRION |
|---|---|
| Manufacturer Part No | STS35-DISCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 3804187 |
| Product Range | STS3x-DIS Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM9.750 |
| 10+ | RM8.780 |
| 50+ | RM8.390 |
| 100+ | RM8.050 |
| 250+ | RM7.700 |
| 500+ | RM7.340 |
| 1000+ | RM7.000 |
| 2500+ | RM6.750 |
Product Information
| Manufacturer | SENSIRION |
|---|---|
| Manufacturer Part No | STS35-DISCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 3804187 |
| Product Range | STS3x-DIS Series |
| Technical Datasheet | |
| Sensor Output Type | Digital |
| IC Output Type | Digital |
| Accuracy | ± 0.1°C |
| Sensing Accuracy Range | ± 0.1°C |
| Measured Temperature Min | -40°C |
| Sensing Temperature Min | 20°C |
| Sensing Temperature Max | 60°C |
| Measured Temperature Max | 125°C |
| Sensor Case / Package | DFN |
| Sensor Case Style | DFN |
| No. of Pins | 8Pins |
| Supply Voltage Min | 2.15V |
| Supply Voltage Max | 5.5V |
| No. of Channels | - |
| Resolution | 16 bits |
| Output Interface | I2C |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | STS3x-DIS Series |
| Qualification | - |
| MSL | MSL 1 - Unlimited |
Product Overview
STS35-DIS is a high-accuracy digital temperature sensor IC. It is a new high-accuracy digital temperature sensor. It relies on the industry-proven CMOSens® technology, providing for increased intelligence, reliability and improved accuracy specifications compared to its predecessors. Its functionality includes enhanced signal processing, two distinctive and user-selectable I2C addresses and communication speeds of up to 1MHz. The DFN package has a footprint of 2.5 x 2.5mm² while keeping a height of 0.9mm. This allows for integration of the STS3x-DIS into a great variety of applications. Additionally, the wide supply voltage range of 2.15V to 5.5V guarantees compatibility with a wide range of applications.
- Fully calibrated and linearized digital output
- Very fast start-up and measurement time
- Tiny 8-pin DFN package
- NIST traceability
- Accuracy tolerance is ±0.1°C typ at 20°C to 60°C
- Slew rate change of the supply voltage is 20V/ms maximum
- Supply current is 0.2µA typ at idle state (single shot mode) T= 25°C
- Operating temperature range from -40 to 125°C
Technical Specifications
| Sensor Output Type | Digital |
|---|---|
| Accuracy | ± 0.1°C |
| Measured Temperature Min | -40°C |
| Sensing Temperature Max | 60°C |
| Sensor Case / Package | DFN |
| No. of Pins | 8Pins |
| Supply Voltage Max | 5.5V |
| Resolution | 16 bits |
| Operating Temperature Min | -40°C |
| Product Range | STS3x-DIS Series |
| MSL | MSL 1 - Unlimited |
| IC Output Type | Digital |
|---|---|
| Sensing Accuracy Range | ± 0.1°C |
| Sensing Temperature Min | 20°C |
| Measured Temperature Max | 125°C |
| Sensor Case Style | DFN |
| Supply Voltage Min | 2.15V |
| No. of Channels | - |
| Output Interface | I2C |
| Operating Temperature Max | 125°C |
| Qualification | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Switzerland Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85423990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .19 |
