20066-4

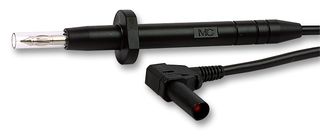

Test Lead, Test Tip Probe to 4mm Right Angle Banana Plug, Black, 500 V, 32 A, 1 m
Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerSTAUBLI
Manufacturer Part No20066-4
Order Code226142
Technical Datasheet
Test Connector Type ATest Tip Probe
Test Connector Type B4mm Right Angle Banana Plug, Shrouded
Lead Length - Imperial3.3ft
Lead Length - Metric1m
Insulator ColourBlack
Current Rating32A
Voltage Rating500VAC
Product Range-
SVHCNo SVHC (17-Jan-2022)
Alternatives for 20066-4
1 Product Found
Product Overview
The 20066-4 is a highly flexible PVC Test Lead features one end 4mm test probe with spring-loaded Multilam®, the other end with a right-angled 4mm Multilam® plug. The insulating sleeve over the probe tip can be pushed back at the press of a button.
Applications
Test & Measurement
Technical Specifications
Test Connector Type A
Test Tip Probe
Lead Length - Imperial
3.3ft
Insulator Colour
Black
Voltage Rating
500VAC
SVHC
No SVHC (17-Jan-2022)
Test Connector Type B
4mm Right Angle Banana Plug, Shrouded
Lead Length - Metric
1m
Current Rating
32A
Product Range
-
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Tariff No:90303100
US ECCN:3A992.a
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.064
