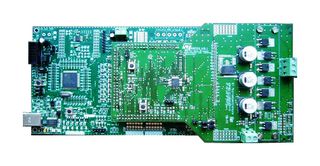

STMICROELECTRONICS EVAL-L99ASC03

Evaluation Board, L99ASC02 3-Phase BLDC Motor Driver

STMICROELECTRONICS EVAL-L99ASC03
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
EVAL-L99ASC03
Order Code:
2855561
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
EVAL-L99ASC03   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

Evaluation-board for L99ASC03G sensorless three-phase pre-driver BLDC motor control. It's composed by a mother-board and a daughter-board on which is pre-assembled the L99ASC03. The system features an enhanced power management power supply functionalities including various standby modes.
  • Driver & power two separated and signal shielded stages
  • ISO pulse protection (not soldered)
  • Reverse polarity protection available on each battery voltage input: Vs, VSREG, power stage
  • Current reference comparator
  • PCB temperature sensor
  • Hall sensors connector and conditioning circuit
  • INH
  • wake-up button
  • Microcontroller configured to be supplied by L99ASC03 5V LDO
  • Flash mode configurable
  • Compatible with external power boards

Footnotes

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

2 In stock Need more?

2 UK stock available for 3-4 business days delivery

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

RM1,734.03

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
  • 1+
Quantity Price Your Price


1+ RM1,734.03
