SD2941-10W
RF FET Transistor, 130 V, 20 A, 389 W, 175 MHz, M174

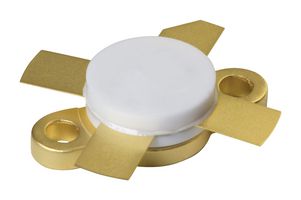

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | SD2941-10WCopy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 2807342 |
| Your Part Number | |
| Technical Datasheet |
431 In Stock
Need more?
55 Delivery in 1-2 Business Days(SG stock)
376 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM405.360 |
| 5+ | RM370.790 |
| 10+ | RM336.210 |
| 50+ | RM331.100 |
Price for:Each
Minimum: 1
Multiple: 1
RM405.36
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | SD2941-10WCopy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 2807342 |
| Technical Datasheet | |
| Drain Source Voltage Vds | 130V |
| Continuous Drain Current Id | 20A |
| Power Dissipation | 389W |
| Operating Frequency Min | - |
| Operating Frequency Max | 175MHz |
| Transistor Case Style | M174 |
| No. of Pins | 4Pins |
| Operating Temperature Max | 200°C |
| Channel Type | N Channel |
| Transistor Mounting | Flange |
| Product Range | - |
| MSL | MSL 2 - 1 year |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Drain Source Voltage Vds | 130V |
|---|---|
| Power Dissipation | 389W |
| Operating Frequency Max | 175MHz |
| No. of Pins | 4Pins |
| Channel Type | N Channel |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
| Continuous Drain Current Id | 20A |
|---|---|
| Operating Frequency Min | - |
| Transistor Case Style | M174 |
| Operating Temperature Max | 200°C |
| Transistor Mounting | Flange |
| MSL | MSL 2 - 1 year |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85412900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005942 |
