STEVAL-DPSTPFC1
Evaluation Board, TN3050H-12WY & SCTW35N65G2V, Totem Pole PFC with Inrush Current Limiter

| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-DPSTPFC1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3642958 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM2,663.610 |
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-DPSTPFC1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3642958 |
| Technical Datasheet | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | TN3050H-12WY & SCTW35N65G2V |
| Kit Application Type | Power Management |
| Application Sub Type | Totem Pole PFC with Inrush Current Limiter |
| Kit Contents | Eval Board TN3050H-12WY & SCTW35N65G2V |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

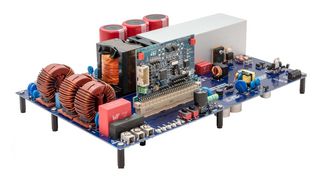

STEVAL-DPSTPFC1 is a 3.6kW bridgeless totem pole boost circuit that achieves digital power factor correction (PFC) with inrush current limiter (ICL). It helps design an innovative topology using ST power kit devices including a silicon carbide MOSFET, thyristor SCR, isolated FET driver and STM32F334 32-bit MCU. This reference design also opens the path to a compact converter running at 72kHz offering a high peak efficiency, low THD distortion (97.5% with 3.7% THD). The reference design includes a power board with bridgeless totem pole boost (with an inrush limiter circuit, switch drivers and an auxiliary power supply), a control board with its MCU, a PFC/ICL control firmware and an adapter board for software debug. Suitable for EV/HEV on-board chargers, charging stations, motor drive, motion control, UPS, industrial battery charger and server/telecom SMPS applications.
- Peak efficiency: 97.5% with 3.7% THD
- Compact PFC converter
- Higher switching lifetime
- Compliant with EMI normative at 4kV
Technical Specifications
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Eval Board TN3050H-12WY & SCTW35N65G2V |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Core Number | TN3050H-12WY & SCTW35N65G2V |
|---|---|
| Application Sub Type | Totem Pole PFC with Inrush Current Limiter |
| Product Range | - |
