STEVAL-ILL009V1

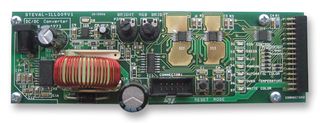

STEVAL-ILL009V1 control board was designed to drive super highbrightness multicolor RGB LEDs with current up to 700mA per LED. The LED brightness and colour are very easily changed by potentiometers, and an automatic colour change mode continuously modulates the colour of the LED to generate multicolor light. A LED over temperature protection is designed on this board, so the power delivered to the LED can be automatically limited to prevent LED overheating. The STEVAL-ILL009V1 is a motherboard assembled without LEDs. To evaluate light effect features, it is necessary to order a load board. Two load boards are available for easy performance evaluation. The first with a OSTAR projection module has ordering code STEVALILL009V3, and the second with Golden Dragon LEDs has ordering code STEVAL-ILL009V4.

• Different LEDs as a load can be used
• 3A at 4V DC/DC converter using L4973D3 for user friendly input (8V to 30V)
• Red, green, blue individual tuning
• 64 levels of brightness for each LED with software colour control
• LED temperature limit set by software
• SW start up implemented (200ms)

Applications

LED Lighting
