STEVAL-ILL061V1

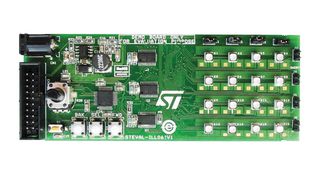

EVAL BOARD, HB RGB LED ARRAY DRIVER
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-ILL061V1
Order Code3228649
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 28 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM253.790 |
Price for:Each
Minimum: 1
Multiple: 1
RM253.79
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-ILL061V1
Order Code3228649
Technical Datasheet
Device TopologyConstant Current
No. of Outputs16Outputs
Output Current-
Output Voltage-
Input Voltage Min6VDC
Input Voltage Max28VDC
Core ChipLED1642GW
Dimming Control TypePWM
Kit ContentsEval Board LED1642GW
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
High brightnessRGB LED array driver system evaluation board with local dimming and diagnostics based on LED1642GW independent PWM LED driver controlled through an STM32 microcontroller SPI interface. An ST L7981 DC-DC converter provides the voltages/power for overall functioning of the board.
- High brightness 4x4RGB LED matrix
- Complete hardware and software package
- Various preconfigured and programmable patterns
- Open/short error simulation and real-time detection
- 6 to 28VDC polarity independent power supply
- GUI for advanced driver configuration
