STEVAL-MIC005V1
Microphone Coupon Board, X-NUCLEO-CCA02M2 Digital MEMS Microphone Expansion Board

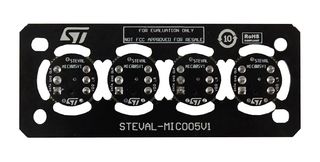

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-MIC005V1
Order Code3586018
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 28 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM152.270 |
Price for:Each
Minimum: 1
Multiple: 1
RM152.27
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-MIC005V1
Order Code3586018
Technical Datasheet
Accessory TypeMicrophone Coupon Board
For Use WithSTMicroelectronics X-NUCLEO-CCA02M2 Digital MEMS Microphone Expansion Board
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
STEVAL-MIC005V1 is a daughterboard containing four MP23DB02MM digital MEMS microphones. The STEVAL-MIC005V1 can be used with X-NUCLEO-CCA02M2. The coupon concept allows easy performance testing of ST MEMS microphones. It is possible to detach the single PCBs hosting each microphone.
- 4 x MP23DB02MM bottom port digital MEMS microphones
- Multi performance mode
- Vsupply from 1.6 to 3.6V
- 122dBSPL acoustic overload point
- PDM single-bit output
- 64dB of SNR in low power mode
- Sensitivity -26dBFs ±1dB (in low power and performance mode)
Technical Specifications
Accessory Type
Microphone Coupon Board
Product Range
-
For Use With
STMicroelectronics X-NUCLEO-CCA02M2 Digital MEMS Microphone Expansion Board
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Italy
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Italy
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0039
