Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-OET004V1Copy |
| Manufacturer Standard Lead Time | 40 weeks |
| Order Code | 2707740 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 40 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM346.670 |
| 5+ | RM339.740 |
Price for:Each
Minimum: 1
Multiple: 1
RM346.67
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-OET004V1Copy |
| Manufacturer Standard Lead Time | 40 weeks |
| Order Code | 2707740 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | USB Protection |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | - |
| Product Range | - |
| Kit Contents | 4 Eval Boards |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

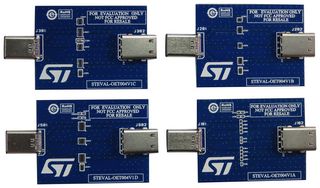

The STEVAL-OET004V1 from STMicroelectronics is a USB Type-C protection and filtering demo PCB. This kit designed to evaluate ESD protection and filtering solutions for USB Type-C connectors. Different PCBs in the kit provide protection solutions for different packages STEVAL-OET004V1A for 0201 packages, STEVAL-OET004V1B for 400µm packages, STEVAL-OET004V1C for 500µm packages, STEVAL-OET004V1D for 500µm and 0201 package.
- Protection of all lines (data, control and power)
- Common mode filters for USB 2.0 and USB 3.1 lines on STEVAL-OET004V1D
- Plug and receptacle enabling insertion of the PCB between host and cable or device and cable
Applications
Safety
Notes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | STMicroelectronics |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
| Application Sub Type | USB Protection |
|---|---|
| Silicon Core Number | - |
| Kit Contents | 4 Eval Boards |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02 |
