STEVAL-PCC009V2
Evaluation Board, STM33, DFU Mode, I2C, SPI and UART Interface, IBU Universal Interface

| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-PCC009V2Copy |
| Order Code | 1972643 |
| Your Part Number | |
| Technical Datasheet |
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-PCC009V2Copy |
| Order Code | 1972643 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | USB Interface |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | STM32F103RBT6 |
| Product Range | - |
| Kit Contents | Eval Board STM32 |
| SVHC | No SVHC (17-Dec-2015) |
Product Overview

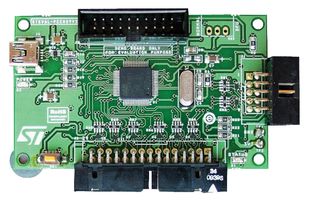

The STEVAL-PCC009V2 is a demo board that implements an IBU universal interface (IBUUI). It is an STM32x based USB to serial interface bridge consisting of a configurable 10 pin interface and a 30 pin interface. The STM32x microcontroller is used as an interface between the PC and another end system. Various communication peripherals are multiplexed with GPIOs, ADC and PWM channels in both the 10 pin and 30 pin interfaces. With these interfaces, there is a provision to connect a device which can communicate using I2C, SPI and UART. Thus, the IBUUI tool allows users to connect a serial communication based device to a PC. At the same time, it allows user control of some GPIOs available in 10 pin and 30 pin interfaces, and sets them to input/output mode as per application requirements.
- Supports two modes
- Application mode, PC GUI allows SPI, I2C, UART interface and control of the communication parameters
- DFU mode, allows the user to change the firmware if required to suit specific applications
- Board power supplied through a USB Mini B type connector
- DLL files provided to allow users to create a customized PC GUI
Applications
Communications & Networking
Notes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | STMicroelectronics |
| Product Range | - |
| SVHC | No SVHC (17-Dec-2015) |
| Application Sub Type | USB Interface |
|---|---|
| Silicon Core Number | STM32F103RBT6 |
| Kit Contents | Eval Board STM32 |
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Dec-2015) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .060328 |
