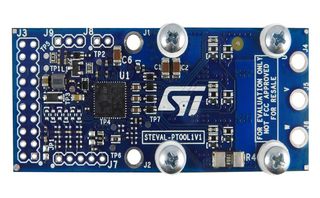

STEVAL-PTOOL1V1
Reference Design Board, STSPIN32F0B, 3 Phase BLDC Motor Controller
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-PTOOL1V1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3585924 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM216.630 |
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-PTOOL1V1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3585924 |
| Technical Datasheet | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | STSPIN32F0B |
| Kit Application Type | Power Management |
| Application Sub Type | 3 Phase BLDC Motor Controller |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | Reference Design Board STSPIN32F0B |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
STEVAL-PTOOL1V1 compact 70mm x 30mm reference design board is tailored for low voltage power tools driven by 3-phase brushless motors, supplied by 2S to 6S batteries. The design is based on the STSPIN32F0B controller and STL180N6F7 (or STL220N6F7) Power MOSFET. The board is ready, and can be configured for 6-step sensorless with few hardware modifications. The board can deliver up to 15 A continuous current, thanks also to the optimal thermal dissipation provided by an embedded heatsink. It embeds a fast power-on circuit that connects and disconnects the battery, allowing standby consumption below 1 μA for extended battery duration. Several protection features are included, such as thermal shutdown, undervoltage lockout, overcurrent protection with programmable threshold and reverse biasing of power stage outputs.
- 7V - 45V motor voltage rating supported
- Output current up to 15Arms
- STSPIN32F0B advanced 3-phase motor controller tailored for single-shunt applications
- STL180N6F7 60 V, 1.9mohm N-channel power MOSFET
- Ultra-low standby current below 1µA
- Heat sink for improved power dissipation
- Input connector for Hall effect sensors and encoder
- Speed regulation through an external trimmer
- Thermal shutdown, UVLO, overcurrent and reverse biasing of power stage outputs
- SWD debug interface and direct firmware update (DFU) via UART
Technical Specifications
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Kit Application Type | Power Management |
| Core Architecture | - |
| Silicon Family Name | - |
| Product Range | - |
| Silicon Core Number | STSPIN32F0B |
|---|---|
| Application Sub Type | 3 Phase BLDC Motor Controller |
| Core Sub-Architecture | - |
| Kit Contents | Reference Design Board STSPIN32F0B |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0245 |
