STGIB8CH60TS-E

Intelligent Power Module (IPM), IGBT, 600 V, 12 A, 1.5 kV, DIP, SLLIMM

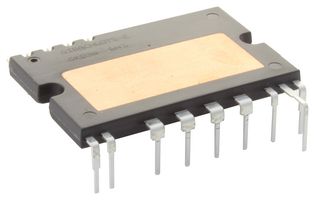

STMICROELECTRONICS STGIB8CH60TS-E
STMICROELECTRONICS STGIB8CH60TS-E
STMICROELECTRONICS STGIB8CH60TS-E
STMICROELECTRONICS STGIB8CH60TS-E
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
STGIB8CH60TS-E
Order Code:
2767841
Product Range
SLLIMM-2nd Series
Technical Datasheet:
STGIB8CH60TS-E   Datasheet
See all Technical Docs

Product Range Selector (SLLIMM-2nd Series)

See all from this product range

Product Overview

The STGIB8CH60TS-E from STMicroelectronics is a 2nd series SLLIMM™ (small low loss intelligent moulded module). This second series of SLLIMM (small low-loss intelligent moulded module) provides a compact, high performance AC motor drive in a simple, rugged design. It combines new ST proprietary control ICs (one LS and one HS driver) with an improved short-circuit rugged trench gate fieldstop (TFS) IGBT, making it ideal for 3-phase inverter systems such as home appliances and air conditioners. It has 20KHz PWM input signal (40°C < TC < 100°C, -40°C < Tj < 125°C). Typical applications include 3-phase inverters for motor drives, home appliances such as washing machines, refrigerators, air conditioners and sewing machines.
  • IPM 12A, 600V 3-phase IGBT inverter bridge with 2 control ICs for gate driving, freewheeling diodes
  • 3.3V, 5V TTL/CMOS inputs with hysteresis and 100°C case operation temperature
  • Internal bootstrap diode, undervoltage lockout of gate drivers
  • Smart shutdown function, short-circuit protection, shutdown input/fault output
  • Separate open emitter outputs, built-in temperature sensor
  • Comparator for fault protection, short-circuit rugged TFS IGBTs
  • Very fast soft recovery diodes and 85Kohm NTC UL 1434 CA 4 recognized
  • Fully isolated package, isolation rating of 1500VRMS/min
  • 300V supply voltage (applied between P-Nu, NV, Nw)
  • 15V control supply voltage (applied between VCC-GND)

Applications

Motor Drive & Control, Consumer Electronics, Portable Devices

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
IGBT

:
600V

:
12A

:
1.5kV

:
DIP

:
SLLIMM

:
SLLIMM-2nd Series
