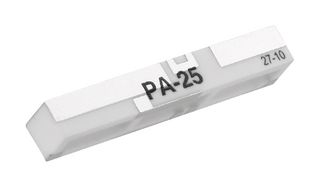

PA.25A
Cellular/3G Antenna, 1.71GHz to 2.17GHz, 3 VSWR, 3.51dBi Gain, 50ohm, Linear Polarisation, PCB
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
Notify me when back in stock
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | RM27.940 | RM27.94 |
| Total Price | RM27.94 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | RM27.940 |
| 10+ | RM25.010 |
| 25+ | RM23.140 |
| 50+ | RM20.490 |
| 100+ | RM17.840 |
| 500+ | RM17.490 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTAOGLAS
Manufacturer Part NoPA.25ACopy
Manufacturer Standard Lead Time18 weeks
Order Code
Re-Reel2919839RL
Cut Tape2919839
Product RangeAnam
Technical Datasheet
Antenna TypeCellular / 3G
Frequency Min1.71GHz
Frequency Max2.17GHz
Antenna MountingPCB
Gain3.51dBi
VSWR3
Input Power5W
Input Impedance50ohm
Antenna PolarisationLinear
Product RangeAnam
SVHCTo Be Advised
Technical Specifications
Antenna Type
Cellular / 3G
Frequency Max
2.17GHz
Gain
3.51dBi
Input Power
5W
Antenna Polarisation
Linear
SVHC
To Be Advised
Frequency Min
1.71GHz
Antenna Mounting
PCB
VSWR
3
Input Impedance
50ohm
Product Range
Anam
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85177900
US ECCN:5A991.g
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.035
