CT6

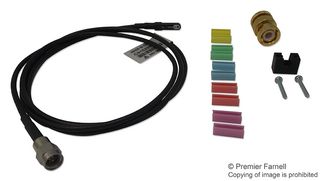

Current Probe, SMA Plug, Current Clamp, 120 mA

TEKTRONIX CT6

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
TEKTRONIX TEKTRONIX
Manufacturer Part No:
CT6
Order Code:
2772546
Technical Datasheet:
CT6   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
SMA Plug

:
Current Clamp

:
120mA

:
-

:
Tektronix MSO/DPO2000B, MSO/DPO3000, MDO4000, TBS1000, TDS200C, TDS3000C Oscilloscopes

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Product Overview

The CT6 from Tektronix is an AC high frequency current probe. It is designed to meet the needs of high-speed circuit design and test applications which require ultra-high bandwidth, low inductance and extremely small form factor. The CT6 provides up to 2GHz bandwidth when used with high-bandwidth oscilloscopes such as the Tektronix TDS694C, TDS794D and TDS7000 Series oscilloscopes or with other compatible 50 ohm input measuring instruments. Low inductance (<3nH) assures that the loading effect of the CT6 on the circuit-under-test will be negligible which is especially important for today's low-amplitude, high-speed circuit designs such as disk drive read/write preamplifiers. Typical applications include data storage read channel design, silicon characterization, high-frequency analogue design, ESD testing, signal injection, differential current measurements, single-shot low rep-rate pulse measurements and propagation delay measurements.
  • Typical bandwidth is 250KHz to 2GHz
  • Rise time is 200ps, sensitivity (into 50 ohm) is 5mV/mA, accuracy is ±3%
  • 1µH magnetizing inductance, 1.5nH leakage inductance, 1.3ohm insertion impedance at 100MHz
  • Maximum bare wire size is 20AWG
  • Maximum bare wire voltage is 30VRMS CAT I
  • Maximum peak pulse current is 6A
  • Propagation delay is 5.2ns
  • Fits into dense, closely-spaced circuit designs
