T3AFG30
Arbitrary Generator, Function, 2 Channel, 30 MHz, AM, ASK, Burst, DSB-AM, FM, FSK, Harmonic
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM5,431.800 |
Product Information
Product Overview

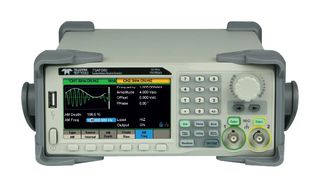

T3AFG30 is a 30MHz bandwidth, 2 channel function/arbitrary waveform generator. The proprietary arbitrary & pulse techniques used in the T3AFG30 model helps to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With the above advantages the T3AFG30 generator can provide user with a variety of high fidelity and low jitter signals, which can meet the growing requirements of a wide range of complex applications.
- 16kpts/ch memory
- 150MS/s per channel sample rate
- 4.3inch TFT LCD display
- USB host, USB device, LAN connectivity
- 14 bit resolution
- Store and recall user defined waveforms
- Load and replay built in arbitrary waveforms
- TrueArb and EasyPulse function
- Operating temperature range from 0°C to 40°C
- Dimension is 260.09mm x 107.18mm x 295.65mm
Contents
Function/arbitrary waveform generator, Quick start guide, USB cable, Calibration certificate, Power cord.
Technical Specifications
Arbitrary, Function
T3AFG Series
AM, ASK, Burst, DSB-AM, FM, FSK, Harmonic, PM, PSK, PWM, Sweep
-
2 Channel
30MHz
-
No SVHC (21-Jan-2025)
