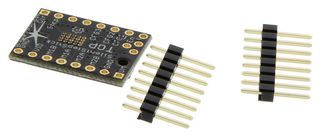

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | TRINAMIC / ANALOG DEVICES |
|---|---|
| Manufacturer Part No | TMCSILENTSTEPSTICKCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2822153 |
| Your Part Number | |
| Technical Datasheet |
41 In Stock
Need more?
41 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM68.240 |
| 5+ | RM66.880 |
Price for:Each
Minimum: 1
Multiple: 1
RM68.24
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TRINAMIC / ANALOG DEVICES |
|---|---|
| Manufacturer Part No | TMCSILENTSTEPSTICKCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2822153 |
| Technical Datasheet | |
| Application Sub Type | Stepper Motor Driver |
| Silicon Manufacturer | Analog Devices |
| Kit Application Type | Motor Control |
| Accessory Type | Stepper Driver Board |
| Silicon Core Number | TMC2100 |
| For Use With | TMC2100 Eval Board |
| Kit Contents | Evaluation Board TMC2100 |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
TMCSILENTSTEPSTICK is an evaluation board for SILENTSTEPSTICK. The SilentStepStick is a stepper driver board for 2-phase motors, based on the TMC2100, TMC2130, TMC2208, TMC2209 or TMC5160.
- Driver boards are compatible with StepSticks of same familiar size
- Driver board are drop-in replacements for some of them
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Application Sub Type | Stepper Motor Driver |
|---|---|
| Kit Application Type | Motor Control |
| Silicon Core Number | TMC2100 |
| Kit Contents | Evaluation Board TMC2100 |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Manufacturer | Analog Devices |
|---|---|
| Accessory Type | Stepper Driver Board |
| For Use With | TMC2100 Eval Board |
| Product Range | - |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .003 |
