BIM-UNT-AP6X
Magnetic Field Sensor, Rectangular, 10V to 30V, 4 Pin
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTURCK
Manufacturer Part NoBIM-UNT-AP6X
Order Code4284569
Your Part Number
Technical Datasheet
1 In Stock
8 more incoming. You can reserve stock now
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM436.430 |
| 5+ | RM430.330 |
| 10+ | RM424.220 |
Price for:Each
Minimum: 1
Multiple: 1
RM436.43
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTURCK
Manufacturer Part NoBIM-UNT-AP6X
Order Code4284569
Technical Datasheet
Supply Voltage Min10VDC
Supply Voltage DC Min10V
Supply Voltage DC Max30V
Supply Voltage Max30VDC
Sensor HousingRectangular
No. of Pins-
Output Current-
Sensor Output TypePNP
IP RatingIP68
Product Range-
SVHCNo SVHC (20-Jun-2016)
Product Overview

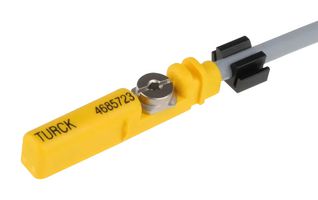

BIM-UNT-AP6X is a magnetic field sensor. It is activated by magnetic fields and is used, in particular, for the detection of the piston position in pneumatic cylinders. As magnetic fields can permeate non-magnetizable metals, it detects a permanent magnet attached to the piston through the aluminium cylinder wall.
- ≤ 10m/s pass speed, ≤ ±0.1mm repeatability
- ≤ 0.1mm temperature drift, ≤ 1mm hysteresis
- 10 to 30VDC operating voltage, ≤ 150mA DC rated operational current
- 15mA no load current, ≤ 0.1mA residual current
- ≤ 0.5KV isolation test voltage, 3-wire, NO contact, PNP output function
- 1KHz switching frequency, rectangular, UNT design
- Plastic, PP housing material, cable electrical connection
- Dimension is 28 x 5 x 6mm, IP68 protection class
- Operating ambient temperature range from -25°C to +70°C
